11/10/2009 - Longeron Bending

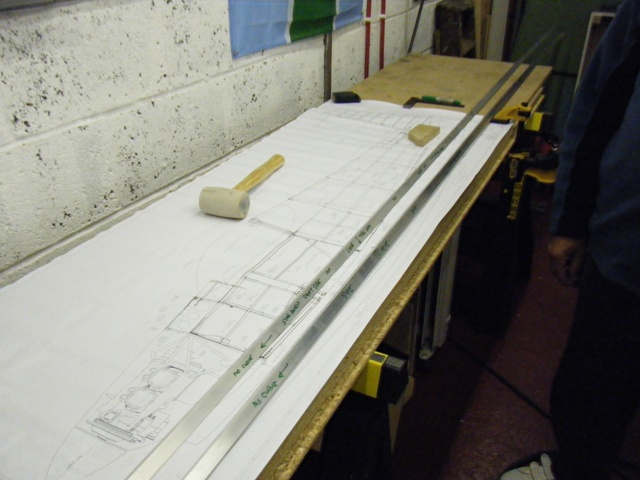

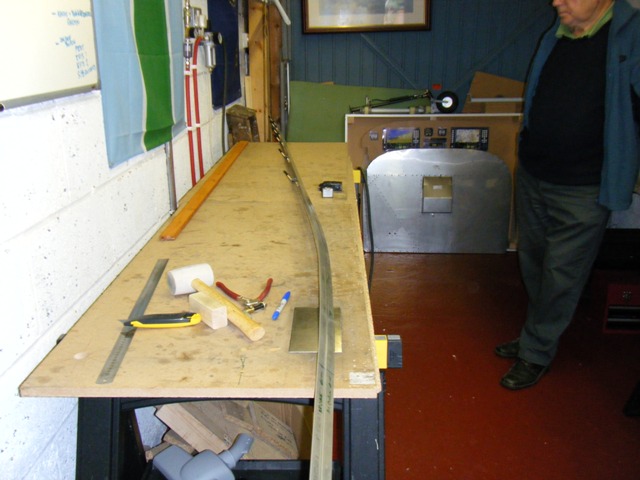

I spent an absolute age on this section.  Making templates to get the bends correct and then keep making sure that both longerons bend straight and do not twist or kick

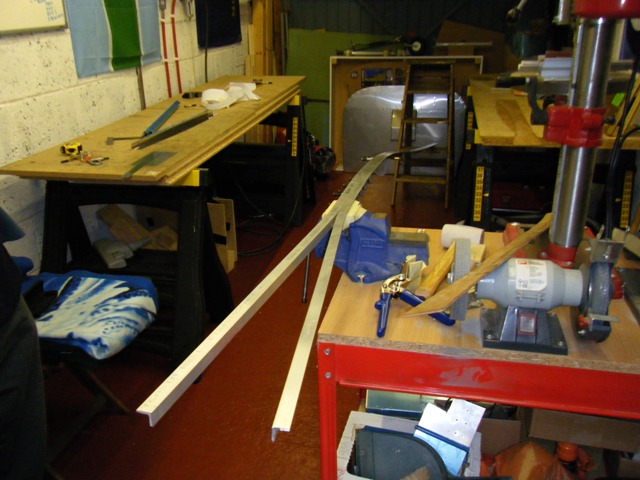

As a result I was pretty unsuccessful until I went on the net and read about a popular method of bending them together clamped in a vice.

This worked really well and wish I had researched earlier as it would of saved loads of time.

The forward downward bends were also easy using the same method.  However I have left the twist that's required until another time, I had had enough of bending for a while !

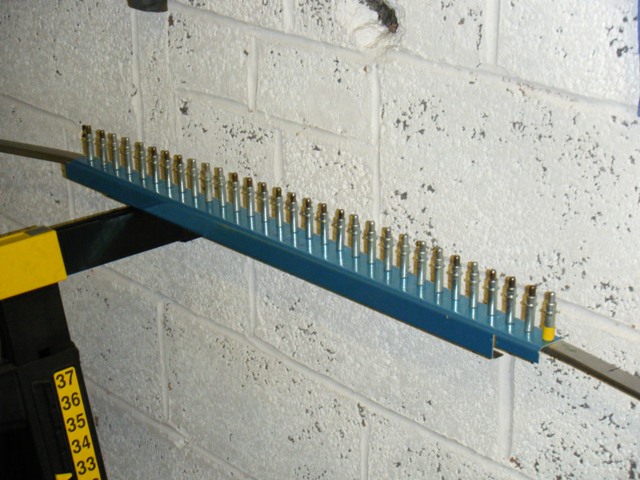

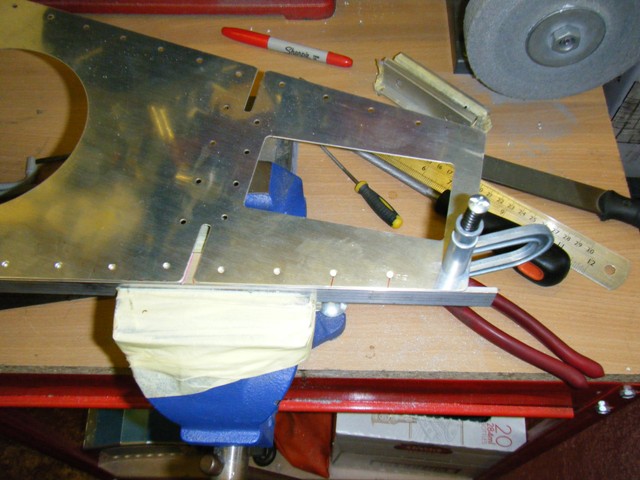

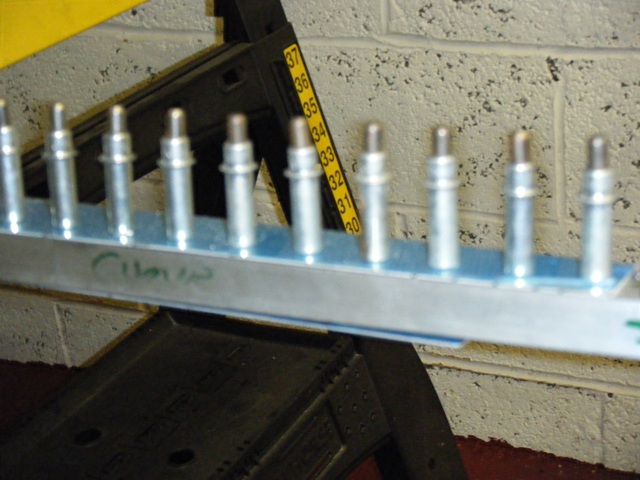

Next up was the process of notching the aft ends of the longerons as per the plans and fitting the sections that will form part of where the canopy will shut down onto and therefore the shoulder edge of the cockpit.

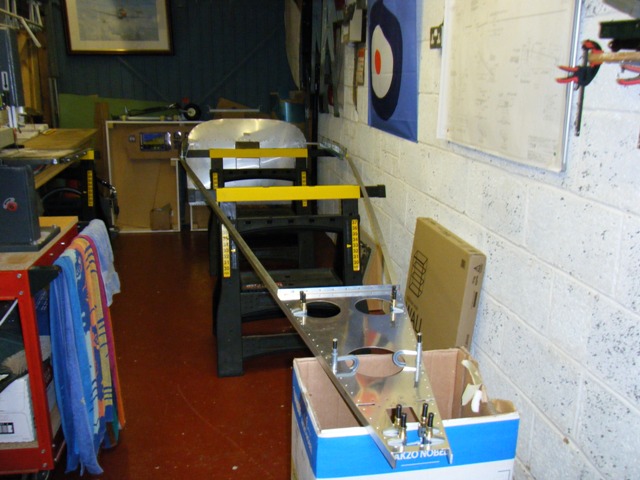

The final picture shows the layout :-)
